Model NS-250 & NS-350 'NoStroke' Drill Units

Non-Stroking Drill Units

Non-Stroking Drill Units provide standard high-precision ground spindles with versatile spindle options designed for use with all standard drilling attachments.

Category:

Description

  • Extremely low cost
  • Standard high-precision ground spindle
  • Standard flat mounting arrangement
  • High overhung load capacity input shaft
  • Designed for use with all standard drilling attachments
  • Versatile spindle options
    • Multiple nose options: #2 & #33 Jacobs Taper, 1/2-20 & 5/8-16 External Threads, 7/16-14 Internal Threads & 17mm O.D.
    • Spindle thru-holes for introduction of media, up to 18 inches maximum overall length. - (Optional - Contact Factory)
    • Threaded rear spindles for rotary union adaption - (Optional - Contact Factory)
  • Small package for close centers drilling applications
    • 2-1/8" width standard, 2" width available
    • Less than 10" long
    • Less than six pounds per module
  • Applications
    • Addition of drilling capabilities to CNC equipment
    • Suitable for use with linear tables

NS-250 Diagram

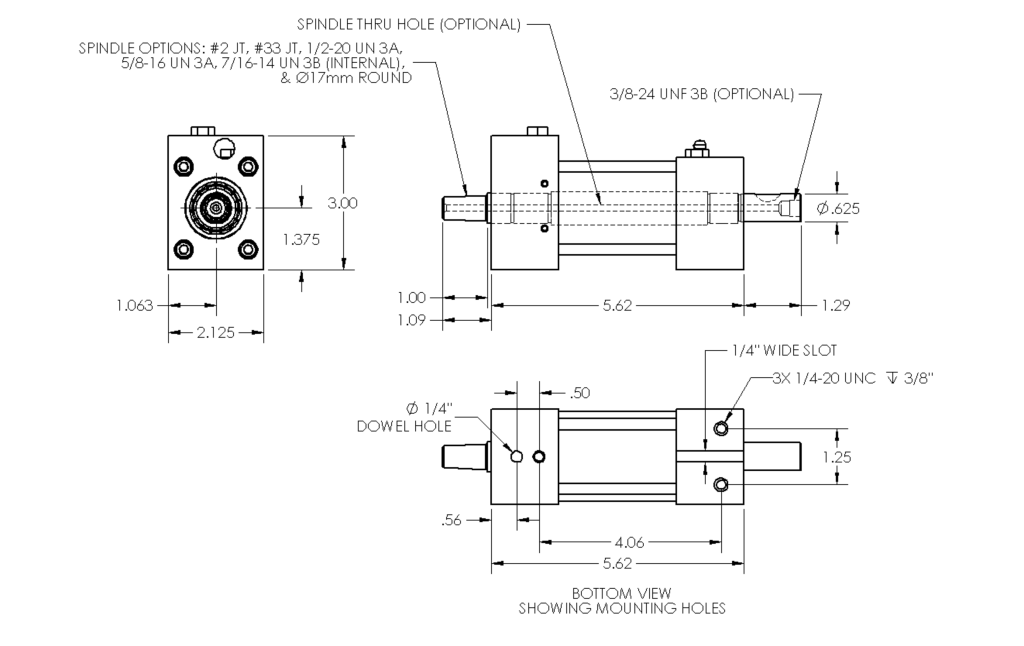

NS-250 Dimensions

NS-350 Diagram

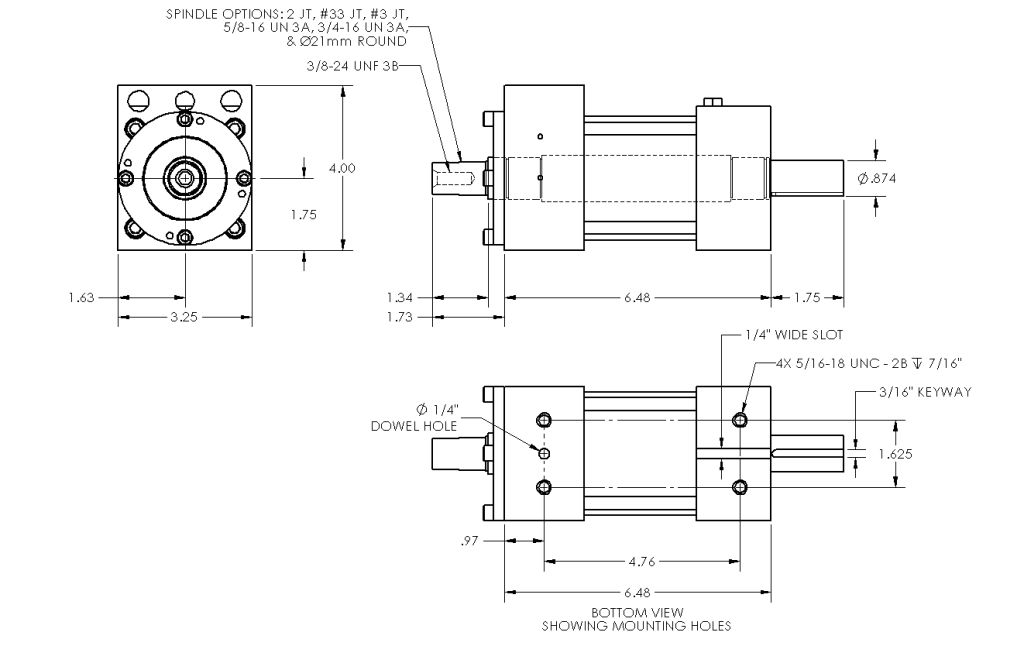

NS-350 Dimensions
