Model 250 Self-Feeding Drill Units
Self-Feeding Drill Units
Pneumatic Stroke, Self-Feeding Drill Unit
The model 250, 252, & 253 self-feeding drill units are automated self-feeding drills which can be actuated with air or oil. They are capable of producing thrusts of up to 182 lbs. with 100 psi air pressure and 364 lbs. with 200 psi oil pressure.
These units are usually used for drilling, reaming, boring and light milling applications, but can also be used whenever simultaneous rotary and linear motions are required. It can be mounted in any position, horizontal, vertical etc. As illustrated, it is supplied without a motor, but can be easily powered by an electric or air motor up to 1/2 hp. A simple pneumatic, or hydraulic control system is required to achieve forward and reverse stroke control. This can be purchased separately from Blackalloy™. See our Drill Unit Components reference page for a description of the customization options available.
Full product details
Drill Unit Options:
The series 250 self-feeding drill units can be equipped with the following options:
- No Feed Control - Model 250
- Feed Control - Model 252
- Deep Hole (Peck) Drilling - Model 253
- Self-Reversing Tapping Head Attachment - 3250 Tapping Heads
- Multiple Spindle Heads with Adjustable or Fixed Spacing
Depth Control: The stroke length of model 250, 252, & 253 series drill units can be controlled by a stop screw dial and nut which is fully adjustable from zero to the entire stroke range as ordered (1-1/2", 2", 3", 4", 6", & 8" Stroke Lengths). Depth control is achieved to within about .001" to .002" inch.
Lubrication: The internal seals of the self-feeding drill unit must be lubricated with a light spindle oil to reduce friction and wear. A filter regulator and lubricator can be purchased from Blackalloy™. Although the spindle and spline bushing are generously lubricated at the factory with grease, continuous use and hostile environments may require manual lubrication on a frequent, scheduled basis.
Drive Motors: Self-feeding drill units are usually powered by electric or air motors up to 1/2 HP and are usually belt driven through pulleys or driven directly through a flexible shaft coupling. The rear bearings are adequately sized to withstand normal pulley belt loads. However, over-tight belt tension may cause over loaded bearings and reduce bearing life.
Recommended Spare Parts: Normal wear items that may require replacement depending on length of service and operating conditions are all bearings and seals. These can be purchased as kits to keep on hand to reduce down time. For critical installations where down time must be minimized, a complete spare drill unit should be kept on hand.

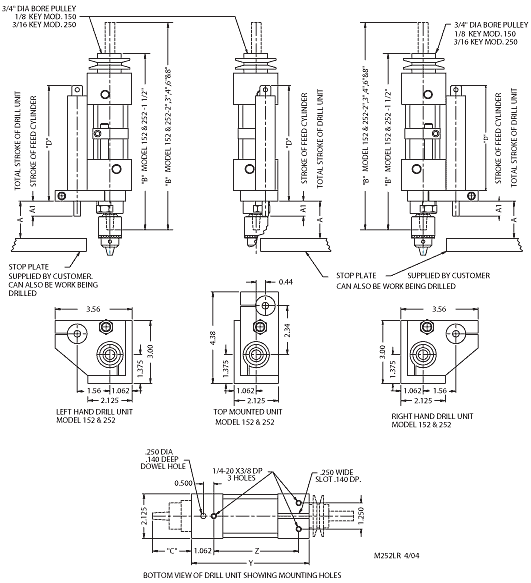

Installation: Self-feeding drill units may be mounted in any attitude, i.e., horizontal, vertical or inclined as long as a sturdy and very flat support for both end blocks is provided, so as not to strain or distort the assembly. Three 1/4”-20 tapped holes are provided for mounting the unit, and a 1/4" dowel hole and 1/4" keyway are located in-line with the spindle, to facilitate line up and to insure exact repositioning. Flush out all chips and debris from air or oil lines before connecting to unit.
| Model | Drill Units Stroke "A" |
Model 252 | |||
| "B" | "C" | "Y" | "Z" | ||
| 252-1.5 | 1.5 | 9.56 | 3.03 | 5.62 | 4.06 |
| 252-2 | 2 | 10.56 | 3.03 | 6.13 | 4.56 |
| 252-3 | 3 | 12.56 | 3.03 | 7.13 | 5.56 |
| 252-4 | 4 | 14.56 | 3.03 | 8.13 | 6.56 |
| 252-6 | 6 | 18.56 | 3.03 | 10.12 | 8.56 |
| 252-8 | 8 | 22.56 | 3.03 | 12.12 | 10.56 |
| Dimensions in Inches | |||||
| Stroke Lengths: |
1-1/2", 2", 3", 4", 6", & 8" | |
| Feed Control Lengths: | 1", 2", 3", 4", & 6" | |
| Spindle Extensions: | #2 Jacobs Taper | |
| Ø17mm (Ø.669") Round | ||
| 5/8-16 External Thread | ||
| 7/16-14 Internal Thread | ||
| Max Drill Size: | Ø3/8" in Steel | |
| Ø5/8" in Aluminum | ||
| Ø7/8" in Wood & Plastic | ||
| Recommended Maximum RPM: | 3,600 RPM (5,000 w/ High Speed Bearings) | |
| Recommended Maximum HP: | 1/2 HP | |
| Maximum Operating Pressure: | 200 PSI | |
| Minimum Operating Pressure: | 20 PSI | |
| Cylinder Bore: | Ø1.75" | |
| Spindle Runout: | .0002" - .0003" | |
| Effective Stroke Area - Forward: | 1.82 in.² | |
| Effective Stroke Area - Reverse: | 1.19 in.² | |
| Thrust @ 100 PSI: | 182 lbs. | |
| Port Size: | 1/8" NPT | |
| Standard Pulley P.D. (Ø.750" Bore): | 1.75" ('3L' Belt) | |
| Maximum Ambient Temperature: | 150°F (65°C) |
