Reversible Tapping Heads

For Blackalloy™ Model 150, 250 & 350 Drill Units

Specifically suited for automatic drill unit applications where single holes are tapped repetitively. Low-cost alternative to more expensive lead screw tapping machines; no motor reversing required.

Description

Specifically suited for automatic drill unit applications where single holes are tapped repetitively. Low-cost alternative to more expensive lead screw tapping machines; no motor reversing required.

  • Model 3250 (3/8-24 Threaded Mount) & Model 3500H6 (5/8-16 Threaded Mount). Both also available with 1/2-20 Threaded Mount & #33JT Mount. Consult Factory.
  • Collet Chuck with Jacobs Rubber-Flex® Collets
    • For Model 3250: #0-#8 & #10
    • For Model 3500H6: #0-1/4” & 1/4”-1/2”
  • Use With All Inch & Metric Taps; All Thread Pitches
  • Short Stroke Self-Feed -- 1/8" Float Compensates for Some Lead Error
  • Positive Drive -- Full Power of Drill Unit Transmitted to Tap
  • Automatic Reversing -- 1:1 Forward/Reverse Speed Ratio
  • Re-Entry Cushion
  • Vertical or Horizontal Operation -- Any Position or Angle
  • Accurate Depth Control
  • Factory Mounted, or Field Retrofittable

Model 3250

Model 3250 (3/8-24 Threaded Mount)

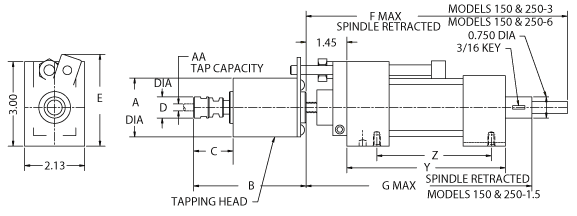

Drill Unit Mounted Tapping Head Diagram

Model 3250 Tapping Head (3/8-24 Threaded Mount)

Drill Unit Model # Stroke G F Y Z
150-15 1.5 8.44 -- 5.62 4.06
150-20 2 9.44 -- 6.12 4.56
150-30 3 -- 11.44 7.12 5.56
150-40 4 -- 13.44 8.12 6.56
150-60 6 -- 17.44 10.12 8.56
150-80 8 -- 21.44 12.12 10.56
Dimensions in Inches



Tapping Head Model # Tap Capacity A B C D E
Rating Steel Chuck AA
3250 .25 .25 2.1 4 1.25 .75 3.25
3500 .31 .50 2.73 5.80 1.80 1.09 3.75
Dimensions in Inches

Model 3500

Model 3500 (5/8-16 Threaded Mount)
Drill Unit Mounted Tapping Head Diagram

Model 3500 Tapping Head (5/8-16 Threaded Mount)

Drill Unit Model # Stroke G F Y Z
250-15 1.5 8.44 -- 5.62 4.06
250-20 2 9.44 -- 6.12 4.56
250-30 3 -- 11.44 7.12 5.56
250-40 4 -- 13.44 8.12 6.56
250-60 6 -- 17.44 10.12 8.56
250-80 8 -- 21.44 12.12 10.56
Dimensions in Inches



Tapping Head Model # Tap Capacity A B C D E
Rating Steel Chuck AA
3250 .25 .25 2.1 4 1.25 .75 3.25
3500 .31 .50 2.73 5.80 1.80 1.09 3.75
Dimensions in Inches
